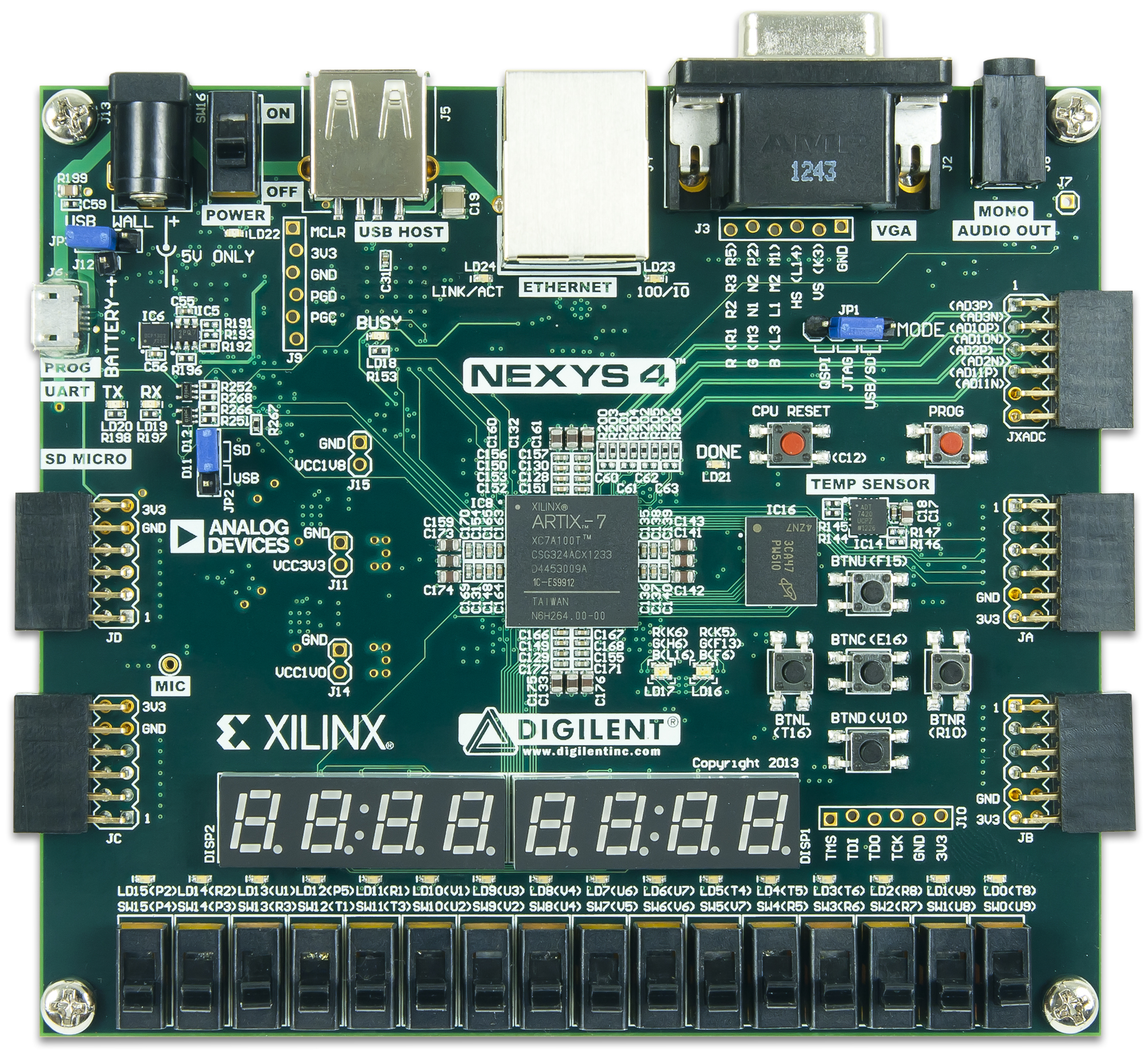

Digilent Nexys 4 Artix-7 FPGA Trainer Board

  • 价格: $320
  • 产品编号: 410-274
  • 器件支持:
  • 供应商: Digilent, Inc.
  • 联盟计划等级: Member

产品描述

The Nexys 4 board is a complete, ready-to-use digital circuit development platform based on the latest Artix-7 Field Programmable Gate Array (FPGA) from Xilinx. The Artix-7 FPGA is optimized for high performance logic and offers more capacity, higher performance, and more resources than earlier designs. With its large, high-capacity FPGA (Xilinx part number XC7A100T-1CSG324C), generous external memories, and collection of USB, Ethernet, and other ports, the Nexys 4 can host designs ranging from introductory combinational circuits to powerful embedded processors. Several built-in peripherals, including an accelerometer, temperature sensor, MEMs digital microphone, speaker amplifier, and several I/O devices allow the Nexys 4 to be used for a wide range of designs without needing any other components.

The Nexys 4 is compatible with Xilinx's new high-performance Vivado® Design Suite as well as the ISE toolset, which includes ChipScope and EDK. Xilinx offers free WebPACK™ versions of these toolsets, so designs can be implemented for no additional cost.


主要特性与优势

  • 10/100 SMSC LAN8720 Ethernet PHY
  • 12-bit VGA
  • 16 slide-switches, 16 discrete LEDs, 8-dig 7seg display, five pushbuttons
  • 16Mbyte Micron Cellular RAM
  • 16Mbyte Quad SPI ROM
  • 3-axis accelerometer, digital microphone, speaker AMP and temp sensor
  • 5 Pmod ports, one connected to FPGA's internal A/D converter
  • Hi-speed Digilent USB port for power, programming, and data transfers
  • SD card socket
  • Type-A USB port for mouse, keyboard, or memory stick
  • Xilinx Artix-7 XC7A100T-CS324

包裝內容物含配件

  • 10/100 SMSC LAN8720 Ethernet PHY
  • 12-bit VGA
  • 16 slide-switches, 16 discrete LEDs, 8-dig 7seg display, five pushbuttons
  • 16Mbyte Micron Cellular RAM
  • 16Mbyte Quad SPI ROM
  • 3-axis accelerometer, digital microphone, speaker AMP and temp sensor
  • 5 Pmod ports, one connected to FPGA's internal A/D converter
  • Hi-speed Digilent USB port for power, programming, and data transfers
  • SD card socket
  • Type-A USB port for mouse, keyboard, or memory stick
  • Xilinx Artix-7 XC7A100T-CS324
  • compatible with Xilinx’s new high-performance Vivado R Design Suite and ISE Webpack, EDK
