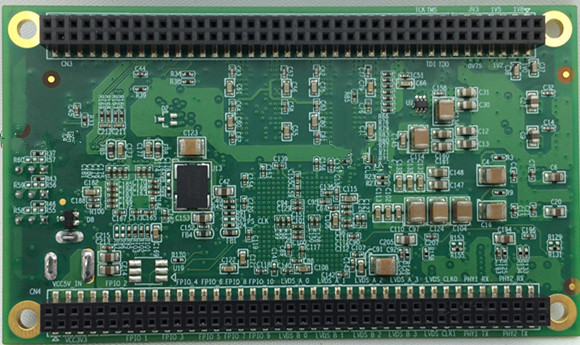

ZYNQ PLC SoM

  • 产品编号: ZYNQ PLC CORE
  • 器件支持:
  • 供应商: Newtouch Electronics (Shanghai) Co.,Ltd.
  • 联盟计划等级: Certified

产品描述

The ZYNQ PLC SoM from Newtouch Electronics(SHANGHAI) Co., Ltd. is designed for Industrial applications, specifically Real time industrial Ethernet applications, such as real time industrial communication module.


主要特性与优势

  • Board Size: H55xW95(mm)
  • Clock: PS, PL
  • Debug Interface: JTAG, LED
  • Device : XC7Z010-1CLG400I
  • Expansion IO Connector: Two 80 Position Connector 2.00mm Pich (PL IO:40/PS IO:11)
  • General Purpose Interface: Gigabit Ethernet x1, Fast Ethernet x2, Socket for microSD card
  • Memory: DDR3 SDRAM 256MByte, QSPI Flash 16MByte
  • Operating Temperature: -20℃ ~ +70℃
  • Power Supply: Single DC 5V operation

包裝內容物含配件

  • Industrial Ethernet reference design
  • ZYNQ PLC Module
