SnowLeo

  • 产品编号: SnowLeo
  • 器件支持:
  • 供应商: V3 Technology, Ltd.
  • 联盟计划等级: Certified

产品描述

SNOWLeo is the lowest priced ZYNQ System-on-Module, ONLY 99 USD. It includes most features of ZYNQ AP SoC, supporting Giga Ethernet, USB OTG, HDMI, SDIO and USB-UART. For Smart Vision application , it can directly connect to CMOS Sensor support up to 10M pixels. Software Defined Radio Kit of SNOWLeo (SNOWLeo SDR) can support 300MHz~3GHz, 28MHz BW application, such as WiFi, LTE or WiMax.


主要特性与优势

  • 2 switches and 2 LEDs
  • 512MB DDR3 SDRAM
  • CMOS Sensor Port, support up to 10M pixels senso
  • General Purpose Extension Port, can translate to PMOD、RM3 and Arduino
  • Gigabit Ethernet
  • HDMI support 3D 1080p Display
  • Micro TF Card Connector
  • Mode select switches
  • Single 5V supply or USB power
  • USB 2.0 OTG
  • USB-UART
  • Xilinx Zynq-7010 in the CLG400 package

包裝內容物含配件

  • Board Design Files, including schematic files
  • Documentation
  • Reference Designs, Design Examples, and Demos

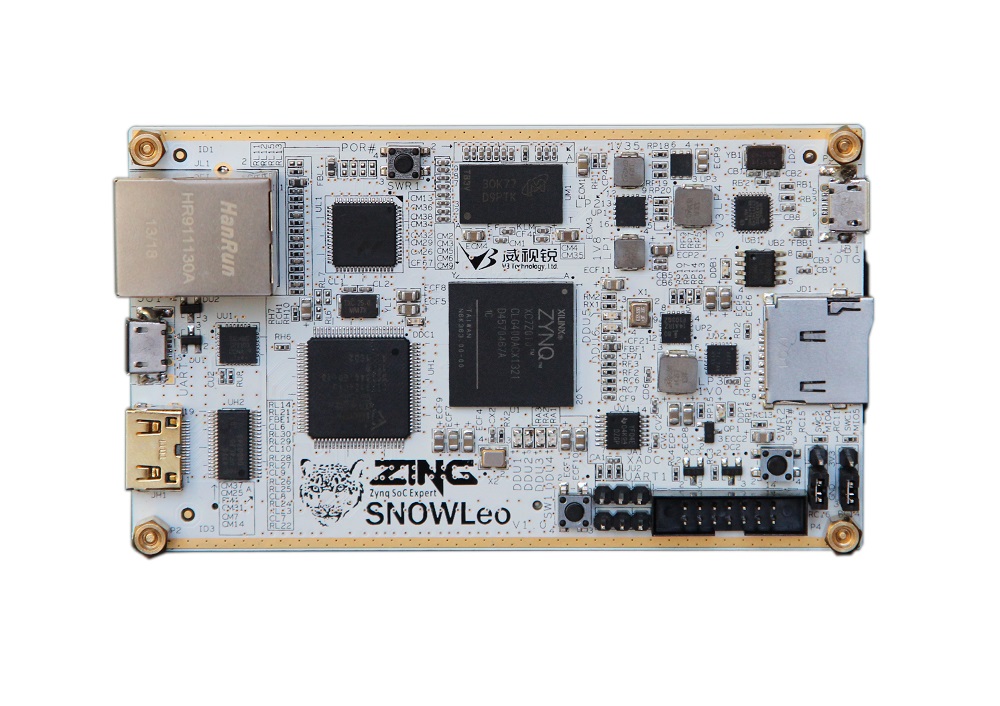

  • SNOWLeo Board featuring the XC7Z010CLG400 AP SoC
