EagleGo HD

  • 产品编号: EagleGo HD
  • 器件支持:
  • 供应商: V3 Technology, Ltd.
  • 联盟计划等级: Certified

产品描述

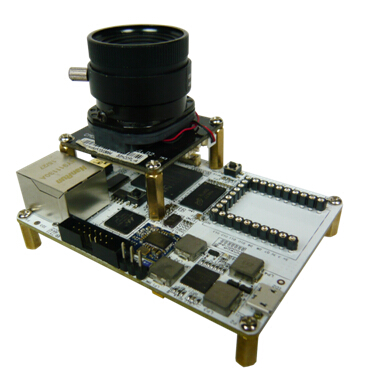

The EagleGo HD embedded vision kit is built on the Zynq-7000 All Programmable SoC with seamlessly integrated ARM Cortex-A9 Processors and FPGA logic. EagleGo HD enables customers to create well differentiated and powerful designs in the area of Industrial Control, Machine Vision, Video image processing, and Test and Measurement.


主要特性与优势

  • 10/100/1000 Mbps Ethernet interface
  • 27 Pin Microduino compatible port, suporting over 40 Microduino modules
  • 512MB DDR3 SDRAM(2*256MB),32bit Data
  • HDMI High Definition Output port, supporting 1080P display
  • Sony 1080p HD image sensor
  • TF Inerface, standard 8G memory card
  • USB Debug port
  • Zynq-7000 XC7Z020-1CLG400

包裝內容物含配件

  • 8GB TF card
  • EagleGo HD development board
  • Gb Ethernet Cable
  • Sony 200M 1080p image sensor (with Camera)
  • USB2.0 Cable
  • Xilinx FPGA simulator
  • Xilinx SDSoC Tools license for 1 year (Original cost $995)
