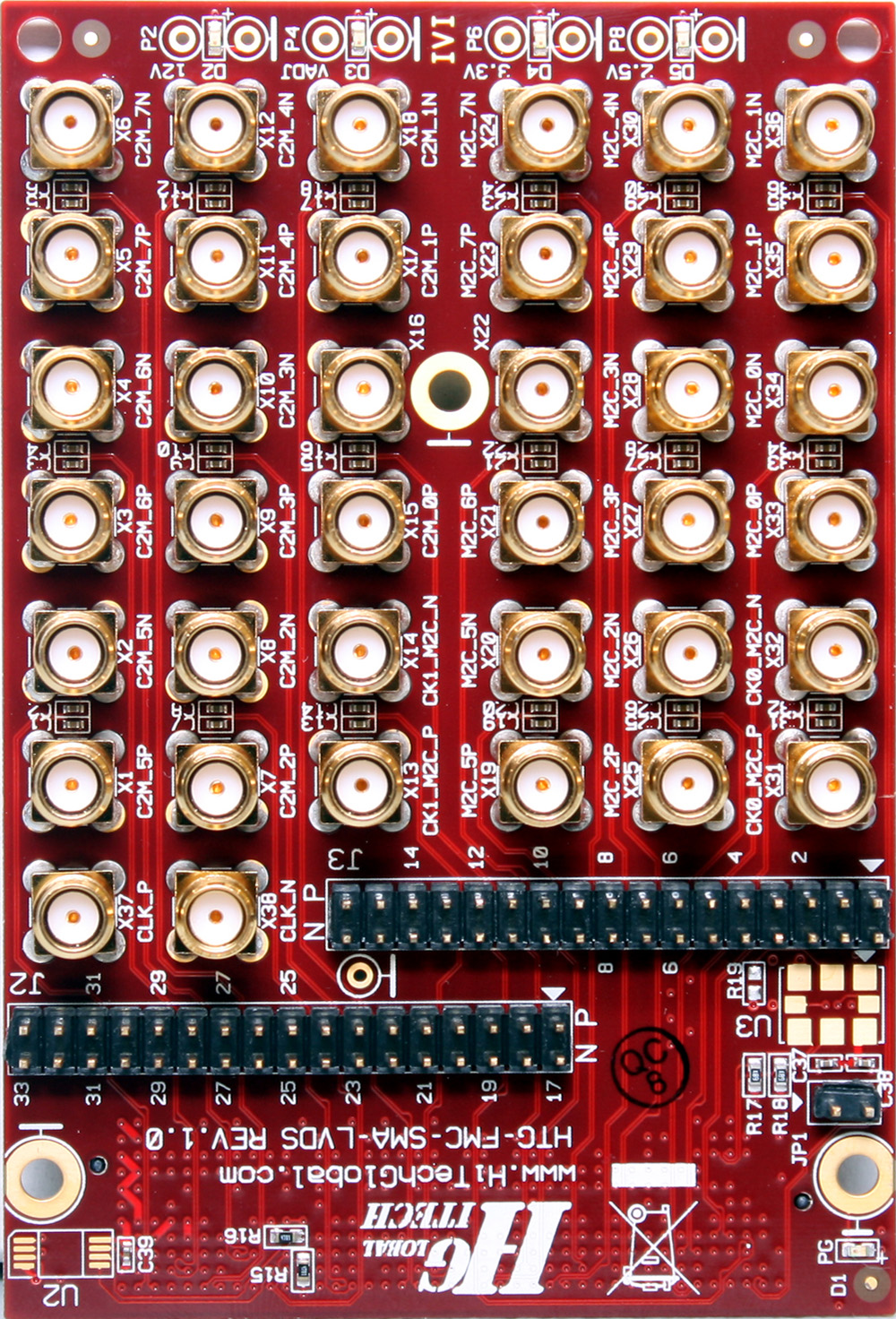

The FMC SMA/LVDSt (HTG-FMC-SMA-LVDS) is a single-size FPGA Mezzanine Connector (FMC) daughter card with support for 8 SMA ports through 32 SMA connectors and 33 pairs of LVDS signals through standard pin headers.


  • x32 SMA FMC Module- Provides access to total of 8 Serial Transceiver Ports
  • SMA connectors for external differential clocks
  • Pin headers for 34 pairs of LVDS signals (FMC LA0 to LA33)
  • on-board clock


  • SMA/LVDS FMC Module
