Sidekiq X2

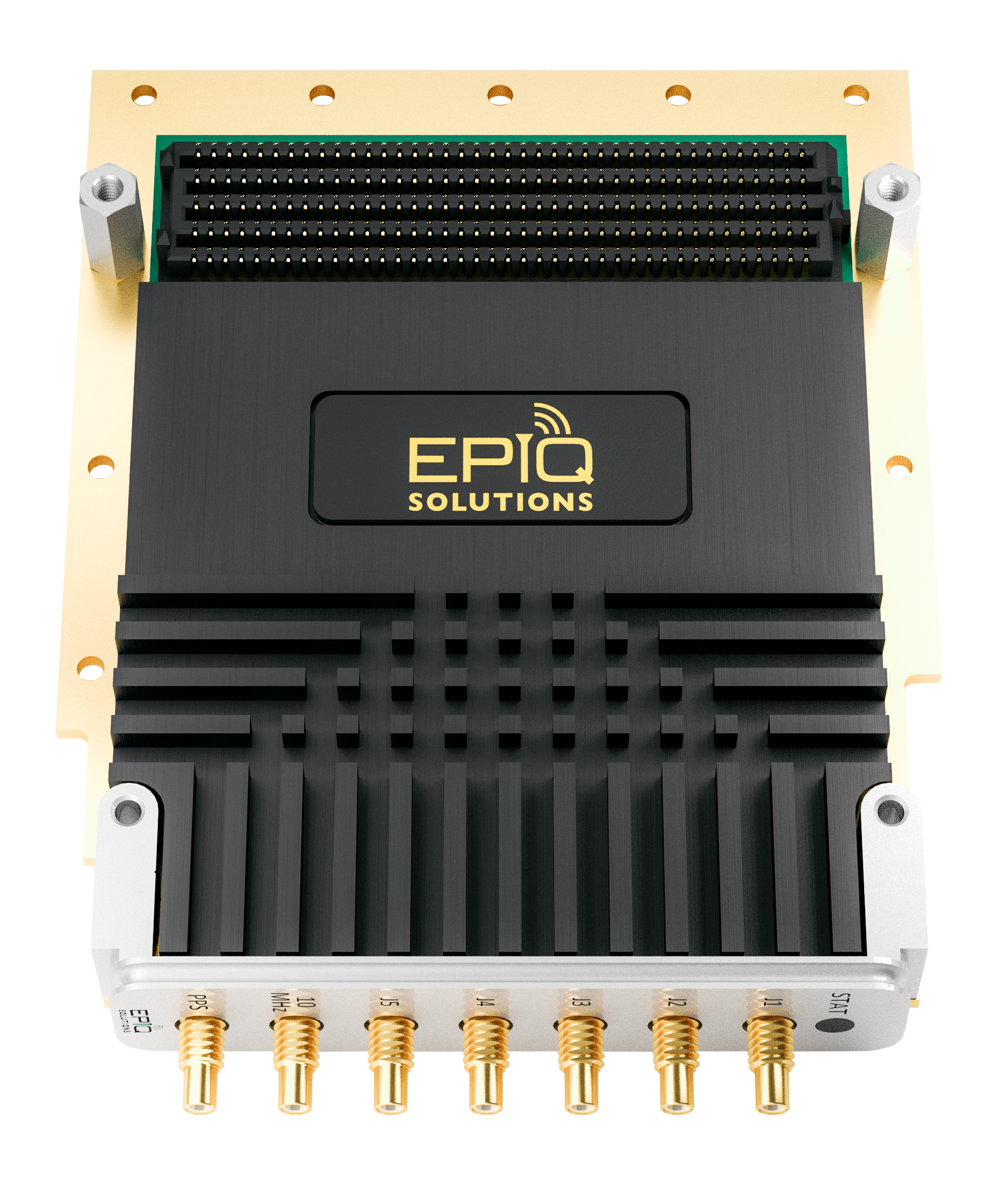

Sidekiq X2 is a multi-channel and highly configurable RF transceiver card in the standard FMC form factor (HPC).


主要特性与优势

  • FPGA Mezzanine Card (FMC), VITA 57.1, with high pin count (HPC) interface
  • Two phase coherent RF receivers (common LO) + third independently tunable RF receiver
  • Two phase coherent RF transmitters (common LO)
  • Continuous RF tuning range between 1 MHz and 6 GHz
  • Configurable RF channel bandwidth up to 100 MHz per channel
  • Seven band RF pre-select filters on all three Rx antenna ports
  • Exceptional dynamic range with 16-bit A/D and 14-bit D/A converters

包裝內容物含配件

  • A Platform Development Kit (PDK) includes the following:
  • FPGA reference design with source code
  • Internal GPS Disciplined Oscillator (GPSDO)
  • Sidekiq X2 FMC card
  • Software libraries and sample test applications
  • Thunderbolt 3 and 3U/6U VPX deployment options with COTS PCIe FPGA carriers
