With typical lifespans extending well past 15 years, you can depend on AMD devices for the life of your design—extending AMD 7 Series FPGAs and adaptive SoCs through 2040 and AMD UltraScale+™ FPGAs and adaptive SoCs through 2045.
Scalable Portfolio of Adaptable MPSoCs
AMD Zynq™ UltraScale+™ MPSoC devices provide 64-bit processor scalability while combining real-time control with soft and hard engines for graphics, video, waveform, and packet processing. Built on a common real-time processor and programmable logic equipped platform, three distinct variants include dual application processor (CG) devices, quad application processor and GPU (EG) devices, and video codec (EV) devices, creating unlimited possibilities for applications such as 5G Wireless, Next-generation ADAS, and Industrial Internet-of-Things.
Heterogeneous Processing for Whole Application Acceleration
Multiple processing engines enable the optimization of functions across an entire application, with programmable hardware providing further performance and safety handling.
Ultra-Compact Packages for High Compute Density
InFO devices are 60% smaller, 70% thinner, with better thermal dissipation and higher signal integrity, all without sacrificing the processing power of the Zynq UltraScale+ MPSoC.
Integrated H.264 / H.265 Video Codec
Zynq UltraScale+ EV devices include a video codec capable of low latency simultaneous encode and decode up to 4K resolution at 60 frames per second.
Deep Learning Processing Unit for AI / ML
Free scalable computation engine optimized for convolutional neural networks, supporting common frameworks, leveraging large repositories of pre-trained AI models.
Adaptable Memory Hierarchy Addresses Memory Bottlenecks
Vast distributed on-chip memory: LUTRAM, Block RAM, UltraRAM, L3 Cache, minimizing memory access latency and allowing accelerators or co-processors to achieve maximum performance. Localized memory also allows full function isolation necessary for safety critical applications.
Multiple Domains for Granular Power Management
Flexible architecture capable of reducing power consumption by eliminating static power of unused blocks, for up to 30% less1 static power consumption. Operate as low as 180 nW in full Deep Sleep mode for maximum power savings when idle.
1. ZUS-007. See “Managing Power and Performance with the Zynq UltraScale+ MPSOC” whitepaper, page 7.
Three Different Devices
Highlight the difference at a glance.
- Zynq UltraScale+ CG
- Zynq UltraScale+ EG
- Zynq UltraScale+ EV
图像缩放
AMD Zynq™ UltraScale+™ CG
Dual-core Entry Point to Heterogeneous Processing
- Dual Arm® Cortex®-A53
- Dual Arm Cortex-R5F
- 16nm FinFET+ Programmable Logic
Product Table
- Zynq UltraScale+ MPSoC CG Devices
- Zynq UltraScale+ MPSoC EG Devices
- Zynq UltraScale+ MPSoC EV Devices
AMD Zynq™ UltraScale+™ MPSoC CG Devices
Processing System Features
| ZU1CG | ZU2CG | ZU3CG | ZU3TCG | ZU4CG | ZU5CG | ZU6CG | ZU7CG | ZU9CG | |
|---|---|---|---|---|---|---|---|---|---|
| Application Processing Unit | Dual-core Arm Cortex-A53 MPCore™ up to 1.3 GHz | ||||||||
| Real-Time Processing Unit | Dual-core Arm Cortex-R5F MPCore up to 533 MHz | ||||||||
| Dynamic Memory Interface | DDR4, LPDDR4, DDR3, DDR3L, LPDDR3 | ||||||||
| High-Speed Peripherals | PCIe® Gen2, USB3.0, SATA 3.1, DisplayPort™, Gigabit Ethernet | ||||||||
Programmable Logic
| ZU1CG | ZU2CG | ZU3CG | ZU3TCG | ZU4CG | ZU5CG | ZU6CG | ZU7CG | ZU9CG | |
|---|---|---|---|---|---|---|---|---|---|
| System Logic Cells (K) | 81 | 103 | 154 | 157 | 192 | 256 | 469 | 504 | 600 |
| Total RAM (Mb)* | 4.8 | 6.5 | 9.4 | 21.2 | 20.6 | 26.6 | 32 | 44.2 | 40.9 |
| DSP Slices | 216 | 240 | 360 | 576 | 728 | 1,248 | 1,973 | 1,728 | 2,520 |
| 16.3 Gb/s Transceiver Count | - | - | - | 8 | 16 |
16 | 24 |
24 | 24 |
| PCI Express | - | - | - | 1x Gen3x8 | 2x Gen3x8 or 1x Gen3x16 |
2x Gen3x8 or 1x Gen3x16 |
- | 1x Gen3x16 and 1x Gen3x8 |
- |
| Maximum I/O Pins | 180 | 252 | 252 | 124 | 252 | 252 | 328 | 464 | 328 |
* Total RAM= Maximum Distributed RAM + Total Block RAM + UltraRAM
Support & Resources

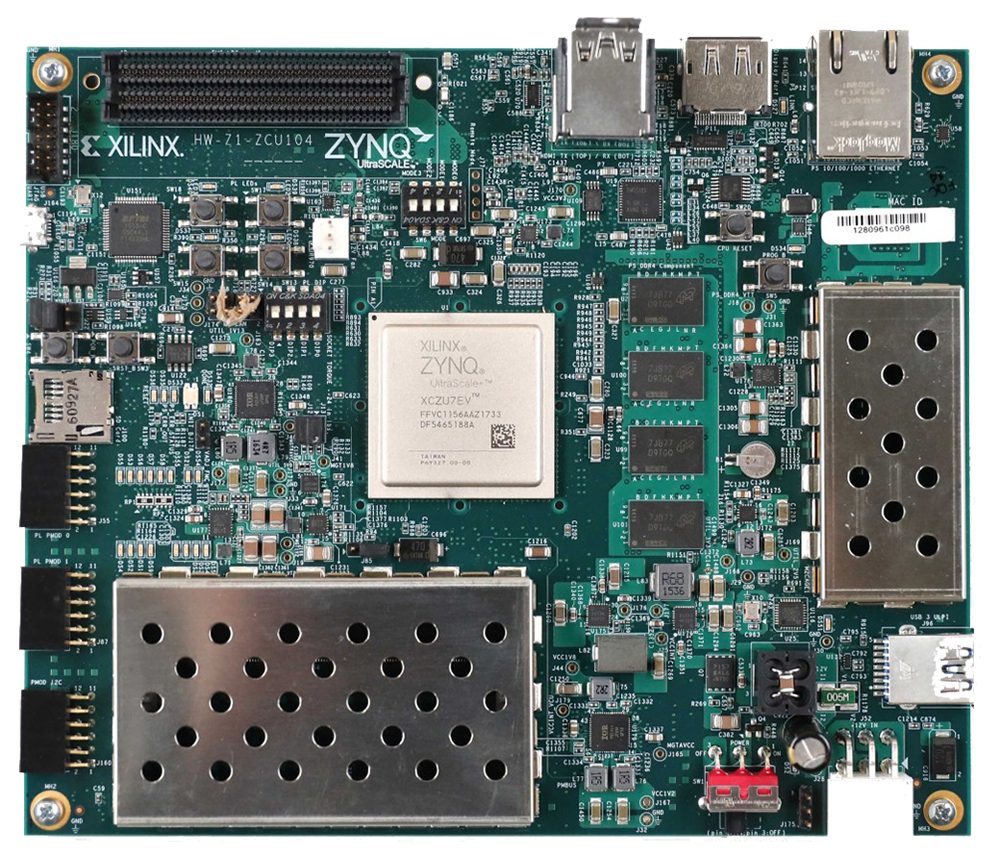

Zynq UltraScale+ MPSoC Evaluation Kit Selection Guide
