AR# 51133

14.4 SDK - Where can I download the FreeRTOS port for Zynq?

Description

Where can I download the FreeRTOS port for Zynq?

解决方案

There is a Zynq port available in the FreeRTOS interactive site.

To use the FreeRTOS:

  1. Unzip the package.
  2. Copy the freertos_zynq_v1_00_a into:
    <XILINX INSTALL DIRECTORY>\ISE_DS\EDK\sw\lib\bsp
  3. Copy the contents on the sw_apps (freertos_blink_led and freertos_hello_world) folder into:
    <XILINX INSTALL DIRECTORY>\ISE_DS\EDK\sw\lib\sw_apps

    Now, when you create a new Zynq BSP, you will be able to choose the FreeRTOS BSP.

Or, if using Standalone SDK, the FreeRTOS can be added to the project repository:

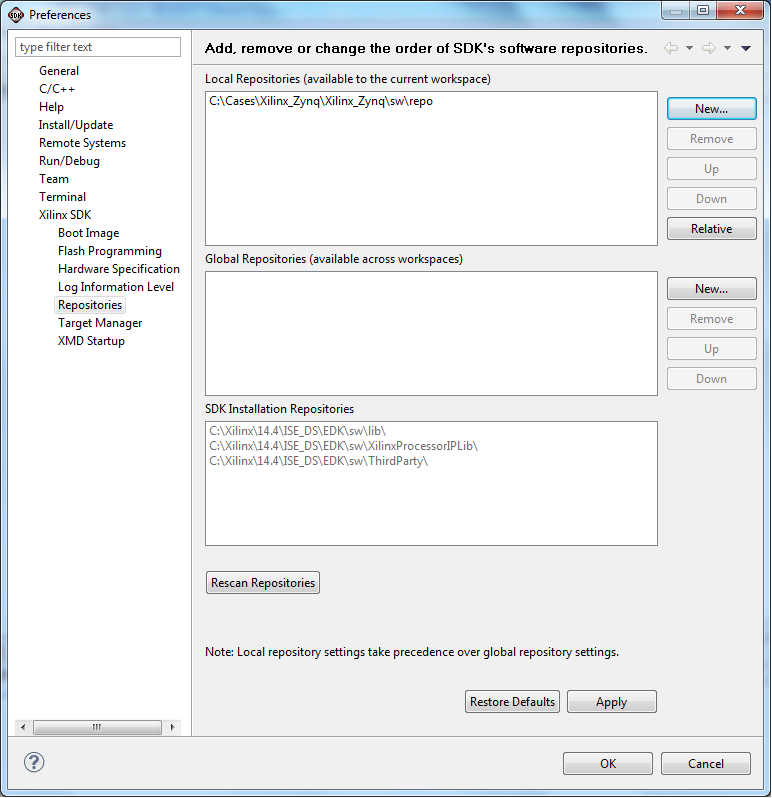

  1. In the Preferences dialog, select Xilinx SDK -> Repositories, and point to the "repo" folder in the unzipped Xilinx_Zynq folder:
  2. Press the Rescan Repositories button and click OK to exit.

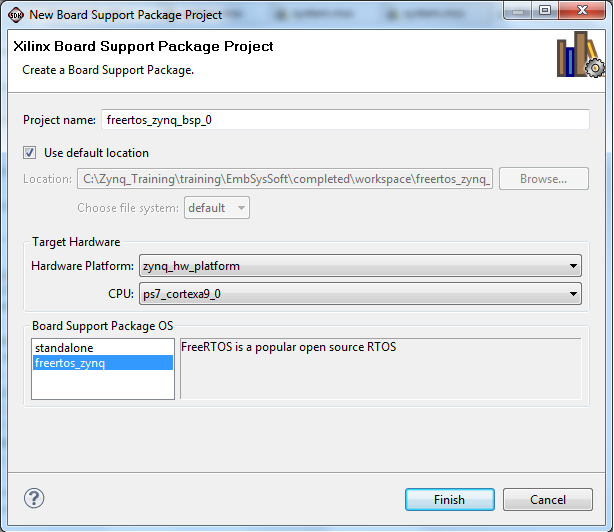

    Now, when a new BSP, (File -> New -> Board Support Settings) is created, the FreeRTOS can be selected:
AR# 51133
创建日期 08/03/2012
Last Updated 03/06/2013
状态 Active
Type 综合文章
器件
  • Zynq-7000
Tools
  • EDK - 14.1
  • EDK - 14.2
  • EDK - 14.3
  • EDK - 14.4
