支持 Qorvo RF 前端的 Zynq UltraScale+ RFSoC 开发套件

by: Avnet

The Avnet Zynq® UltraScale+™ RFSoC Development Kit enables system architects to explore the entire signal chain, from antenna to digital, using tools from MathWorks and industry-leading RF components from Qorvo. We extend the functionality of the Xilinx® Zynq UltraScale+ RFSoC ZCU111 Evaluation Kit by adding a Qorvo 2x2 Small Cell RF front-end 1.8 GHz card for over-the-air transmission, plus native connection to MATLAB® & Simulink® with Avnet's RFSoC Explorer® application.


主要特性与优势

  • Direct-RF sampling without an external RF mixer
  • Over-the-air testing with 2x2 LTE 1800MHz FDD front end
  • Radio-in-the-loop co-simulation (gigabit Ethernet)
  • Avnet RFSoC Explorer for Signal Capture & Analysis with MATLAB and Simulink

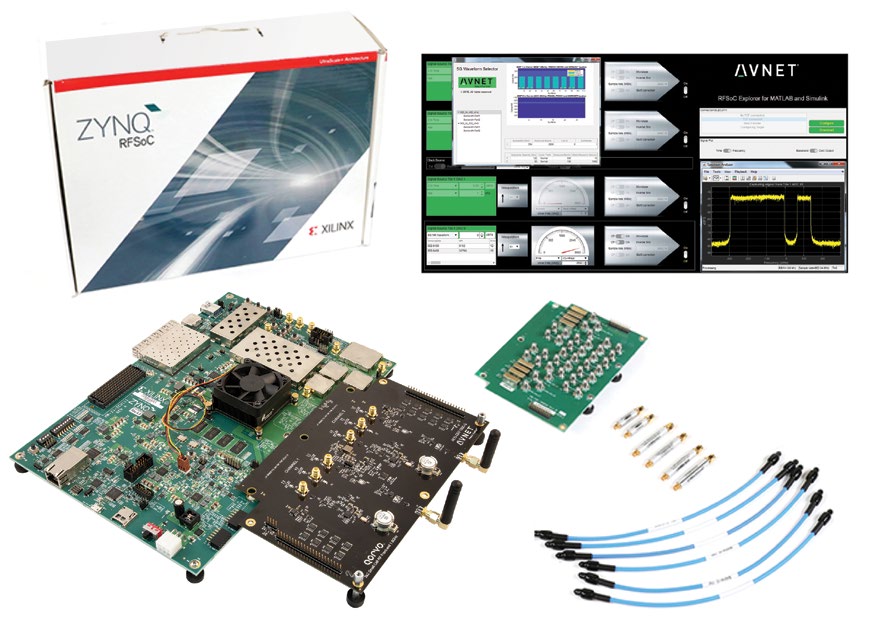

包裝內容物含配件

  • Avnet RFSoC Explorer for MATLAB and Simulink
  • Downloadable documentation and reference designs
  • Free MATLAB Trial Package for Wireless Communications
  • Qorvo 2x2 Small Cell RF Front-end 1.8 GHz Card
  • TE Multi-band Stub Antennae
  • XM500 Balun Board
  • Xilinx Zynq UltraScale+ RFSoC ZCU111 Evaluation Board
