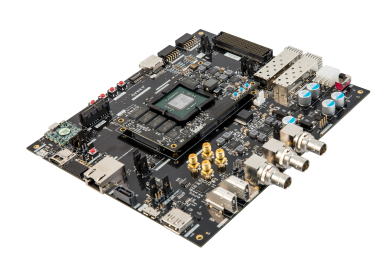

The UltraZed-EV™ Starter Kit consists of the UltraZed-EV System-on-Module (SOM) and Carrier Card bundled to provide a complete system for prototyping and evaluating systems based on the Xilinx powerful Zynq® UltraScale+™ MPSoC EV device family.
The UltraZed-EV SOM PS MIO and GTR pins implement the microSD card, Pmod, USB 2.0/3.0, Gigabit Ethernet, SATA host, DisplayPort, PCIe® root port, dual USB-UART, user LED, and switch and MAC address device interfaces
Third 120-pin Micro Header provides access to the UltraZed-EV SOM PS MIO and GTR transceiver pins, as well as USB and Tri-Ethernet interfaces
Mates with UltraZed-EV SOM via two 200-pin Micro Headers, connecting the UltraZed-EV PL I/O and transceivers to FMC HPC slot, LVDS touch panel interface, SFP+ interface, HDMI In/Out, 3G-SDI In/Out, pushbutton switches, DIP switches, LEDs, Xilinx Syste
The UltraZed-EV Carrier Card
Zynq UltraScale+ MPSoC EV with integrated H.264/H.265 video codec unit, capable of simultaneous encode and decode at up to 4k60
Easy access to 152 user I/O pins, 26 processing system (PS) MIO pins, four high-speed PS-GTR transceivers along w/ four GTR reference clock inputs and 16 programmable logic (PL) high-speed GTH transceivers, and 16 programmable logic (PL) high-speed GTH
High-performance, full-featured SOM with onboard dual system memory, high-speed transceivers, Ethernet, USB, and configuration memory
