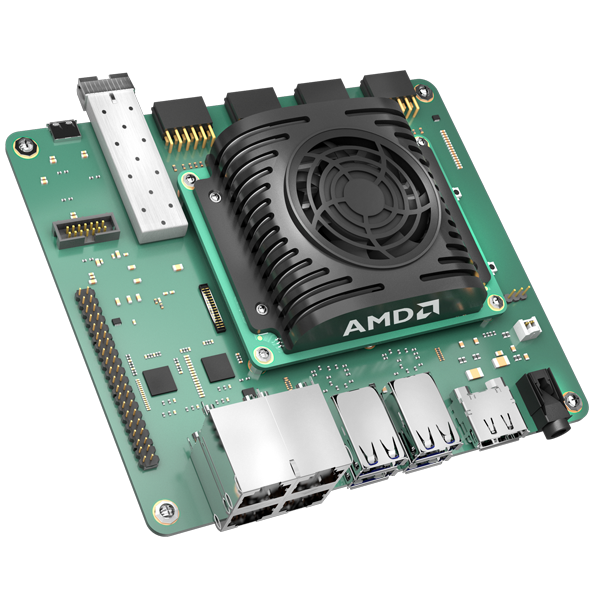

Kria KR260 Robotics Starter Kit

发布者: AMD

As the development platform for Kria K26 SOMs, the KR260 is built for robotics and industrial applications, complete with high performance interfaces and native ROS 2 support for ease of development by roboticists and software developers.

  • 价格: $349.00 MSRP
  • 产品编号:
    • SK-KR260-G
  • 交付周期: 12 Weeks
  • 器件支持: Zynq UltraScale+ MPSoC

  • Product Features

    Optimize for KRIA™ K26 SOM

    2x 240-pin connectors

    All SOM I/O available for sensor & network connectivity

    High Peformance Industrial Vision

    SLVS-EC Rx

    4x USB 3.0 for camera interfaces

    DisplayPort™ 1.2a

    Real-Time Networking Interfaces

    4x RJ45 Ethernet Ports (10/100/1000)

    1 SFP+ optics (10G) for 10 GE Vision

    Expansion w/PMODs & RASBERRY PI Headers

    Extend to any sensor or interface

    Broad Pmod ecosystem

    e.g., Wi-Fi adapters, RS485


  • General Specifications

    Device

    Zynq™ UltraScale+™ MPSoC EV (XCK26)

    Form factor

    SOM + Carrier Card + Thermal Solution

    Starter kit dimensions

    119 mm x 140 mm x 36 mm

    Thermal cooling solution

    Active (Fan + Heatsink)

    System logic cells

    256K

    Block RAM blocks

    144

    UltraRAM blocks

    64

    DSP slices

    1.2K

    Ethernet interface

    4x 10/100/1000 Mb/s RJ-45s
    1x SFP+ Cage

    DDR memory

    4 GB (4 x 512 Mb x 16 bit) [non-ECC] DDR4

    Primary boot memory

    512 Mb QSPI

    Secondary boot memory

    SDHC card

    Device Security

    Zynq UltraScale+ MPSoC hardware root of trust (RoT) in support of secure boot. Infineon TPM2.0 in support of measured boot.

    Video

    x1 SLVS-EC Gen2 x2 lane interface
    DisplayPort 1.2a Output for 1920 x 1080 at 60 Hz

    I/O expansion

    x4 Pmod 12-pin interface
    x1 Raspberry Pi HAT header with 26 I/Os

    USB3.0/2.0 interfaces

    x4
