Industrial Smart Camera
发布者: Optomotive

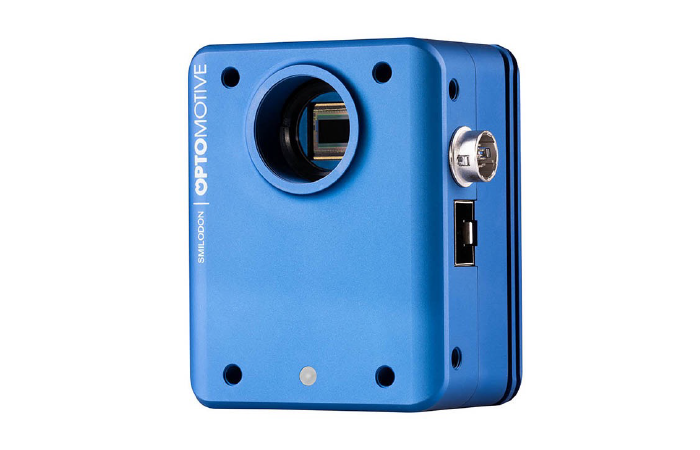

SMILODON 10G EVO is a fully customizable, user-programmable, high-speed industrial smart camera featuring an AMD Kria™ K26 SOM. The camera consists of a rapid imaging sensor and 1 or 10 Gigabit Ethernet. It includes high-performance Arm® system-on-chip (SoC) technology combined with industrial Gpixel imaging sensors.
Product Features
Active pixels ( H x V ): 2600 x 2160 / 4200 x 2160 / 4508 x 4096 / 5120 x 5120
Imaging sensor: GPIXEL
Resolution ( MP ): 5.0 MP / 9.0 MP / 18.0 MP / 25.0 MP
Spectral options: monochrome / color
Optical format: 8.45 (1/2") / 11.8 (2/3") / 15.2 (1”) / 18.1 (1.1")
Active pixels ( H x V ): 2.5 μm
Frame rate ( FPS ): 290 FPS / 290 FPS / 139 FPS / 150 FPS
Dynamic range: 10 bit/12 bit 62/67 dB
Applications
Laser triangulation
Motion capture
Industrial process automation
Industrial quality control
General R&D
Kit Components
Sensor board – imaging sensor, I/O & power, communication
Kria K26 SOM module
Housing – three-piece CNC aluminum with fan
Power & I/O cable – 3m 10-pin cable with connector and breakout box
SFP+ DAC cable – 3m 10G SFP+ direct attach twin axial cable
24V power supply
