Z-turn Board (with Zynq-7020)

Overview

产品描述

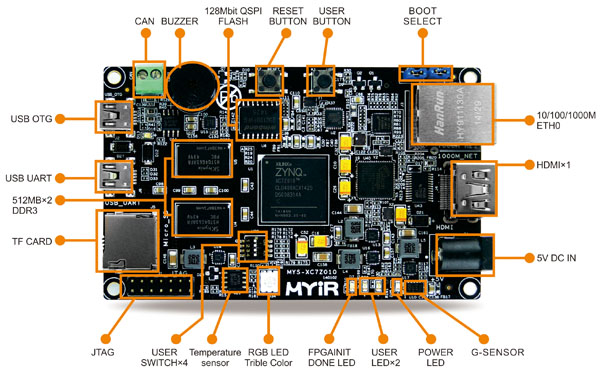

The Z-turn Board is a low-cost linux-ready Single Board Computer built around the Xilinx Zynq-7010 (XC7Z010-1CLG400C) or Zynq-7020 (XC7Z020-1CLG400C) System-on-Chip (SoC) with a dual-core ARM Cortex-A9 processor and FPGA. It has 1GB DDR3 SDRAM and 16MB SPI Flash on board and integrates a set of rich peripherals including UART, USB OTG, Gigabit Ethernet, CAN, HDMI, TF, G-sensor and Temperature sensor. On the rear of the board, there are two 1.27mm pitch 80-pin SMT female connectors to allow the availability of 96 user I/O and configurable as up to 39 LVDS pairs I/O.


主要特性与优势

  • ARM Cortex-A9 + FPGA
  • Ready-to-Run Linux
  • Xilinx XC7Z010/20
  • 1GB DDR3 SDRAM, 16MB SPI Flash
  • Gigabit Ethernet, CAN, HDMI
  • Onboard Three-axis Acceleration Sensor and Temperature Sensor

包裝內容物含配件

  • Z-turn Board and Product Disk
