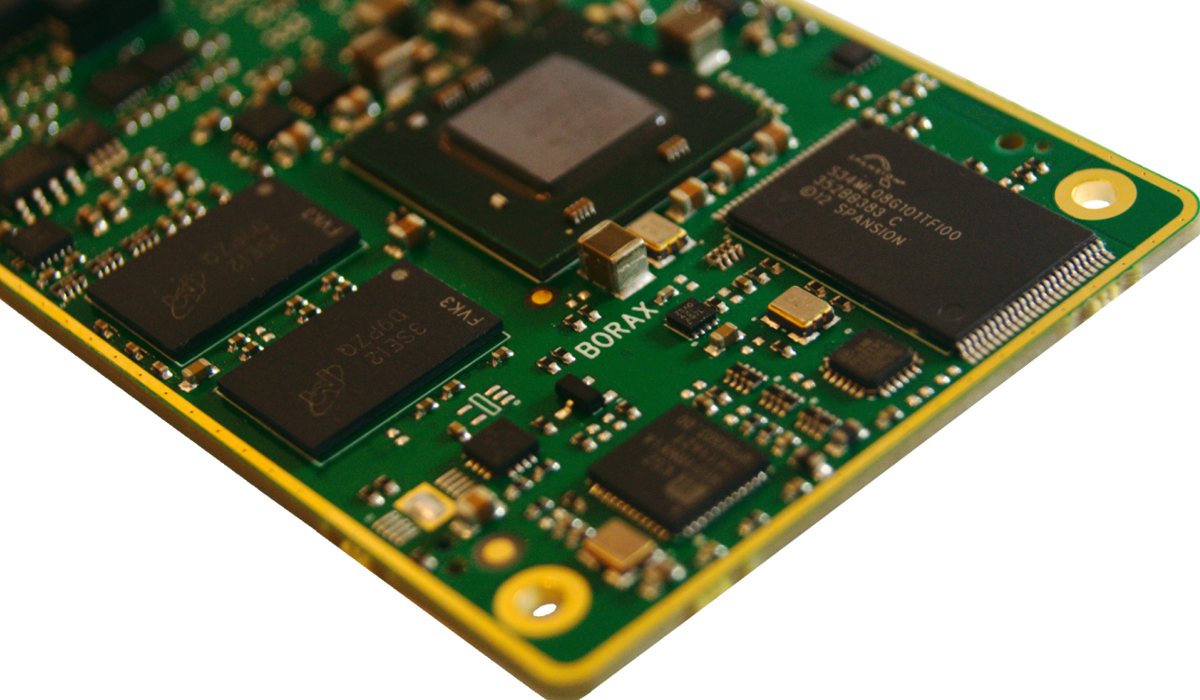

BORA Xpress SOM

发布者: DAVE S.R.L.

BORA Xpress is the new top-class Dual Cortex-A9 + FPGA CPU module by DAVE Embedded Systems, based on the recent AMD Zynq XC7Z015/XC7Z030 application processor. Thanks to BORA Xpress, customers are going to save time and resources by using a compact solution that includes both a CPU and an FPGA, avoiding complexities on the carrier PCB.

The use of this processor enables extensive system-level differentiation of new applications in many industry fields, where high-perfomance and extremely compact form factor (85mm x 50mm) are key factors. Smarter system designs are made possibile, following the trends in functionalities and interfaces of the new, state-of-the-art embedded products. BORA Xpress offers great computational power, thanks to the rich set of peripherals, the Dual Cortex-A9 and the AMD Artix/Kintex 7 FPGA together with a large set of high-speed I/Os (up to 6.25 Gbps).

要求信息

主要特性与优势

  • Zynq XC7Z015
  • Zynq XC7Z030
  • SERDES up to 6.25Gbps
  • 100G mech shock retention
  • NOR SPI on board
  • P2P compatible with BORA SOM based on Zynq XC7Z020

包裝內容物含配件

  • Asymmetric Multiprocessing Support
  • CPU Module
  • Carrier Board
  • FMC connectors support up to 6Gbps
  • Technical Support
