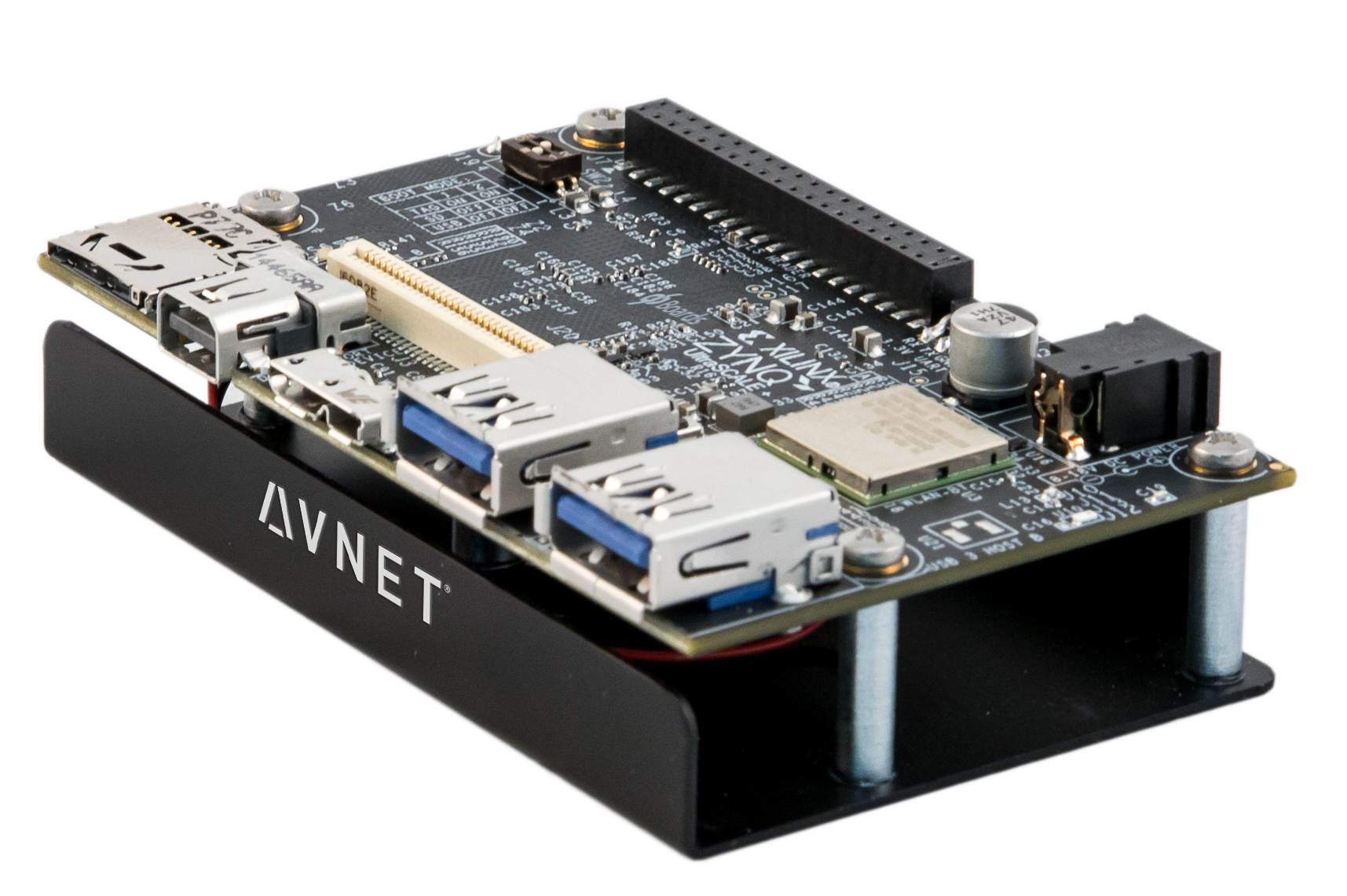

Avnet Ultra96-V2
发布者: Avnet
The Ultra96-V2 updates and refreshes the Ultra96 product that was released in 2018. Like Ultra96, the Ultra96-V2 is an Arm-based, AMD Zynq UltraScale+™ MPSoC development board based on the Linaro 96Boards Consumer Edition (CE) specification. Ultra96-V2 is available in more countries around the world as it has been designed with a certified radio module from Microchip. Additionally, Ultra96-V2 is available in both commercial and industrial temperature grade options. Additional power control and monitoring is possible with the included Infineon Pmics. Like Ultra96, the Ultra96-V2 boots from the provided Delkin 16 GB microSD card. Engineers have options of connecting to Ultra96-V2 through a Webserver using integrated wireless access point capability or to use the provided Linux Matchbox windows environment which can be viewed on the integrated Mini DisplayPort video output. Multiple application examples and on-board development options are provided as examples.
主要特性与优势
- Linaro 96Boards Consumer Edition compatible
- 85mm x 54mm form factor
- 60-pin 96Boards High-speed expansion header
- 40-pin 96Boards Low-speed expansion header
- 2x USB 3.0, 1x USB 2.0 Type A downstream ports
- 1x USB 3.0 Type Micro-B upstream port
- Mini DisplayPort (MiniDP or mDP)
- Aavid Heatsink
- Infineon high efficiency power management
- IDT VersaClock 6E clock generator
- Microchip Wi-Fi / Bluetooth
- Downloadable SD card image for Linux OS with Matchbox desktop environment
- Delkin 16 GB microSD card + adapter
- Micron 2 GB (512M x32) LPDDR4 Memory
- AMD Zynq UltraScale+ MPSoC ZU3EG A484
包裝內容物含配件
- 16 GB microSD card + adapter
- Quick-start instruction card
- Ultra96-V2 single board computer
