inrevium Industrial Grade SOM

  • 产品编号: TB-7Z-IAE
  • 器件支持:
  • 供应商: Tokyo Electron Device Ltd.
  • 联盟计划等级: Certified

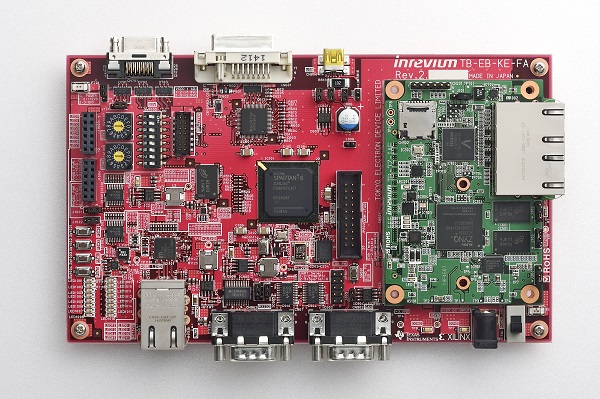

inrevium TB-7Z-IAE is an industrial-grade small form-factor System on Module (SOM) integrating the Xilinx Zynq®-7000 All Programmable SoC, two Gigabit Ethernet, DDR3 (512M Byte), Flash (16M Byte), FRAM(64Kbit) and expansion IO connector. The SOM Development Kit includes a reference carrier board which has CameraLink, USB, CAN and schematics to assist in development. This SOM is designed for low-mid volume industrial OEM applications which requires high-throughput and flexible CPU and FPGA infrastructure for highly-integrated embedded systems.


  • 64Kbit Non-volatile F-RAM
  • Board size:H60xW85(mm)
  • DDR3 SDRAM 512MByte
  • Device : XC7Z020-CLG400I
  • Expansion IO Connector
  • Gigabit Ethernet x 2
  • JTAG
  • Power Supply:Single DC5V operation
  • QSPI Flash 16MByte
  • Socket for microSD card


  • RoHS compliant Zynq-7000 All Programmable SoC Industrial Grade SOM
