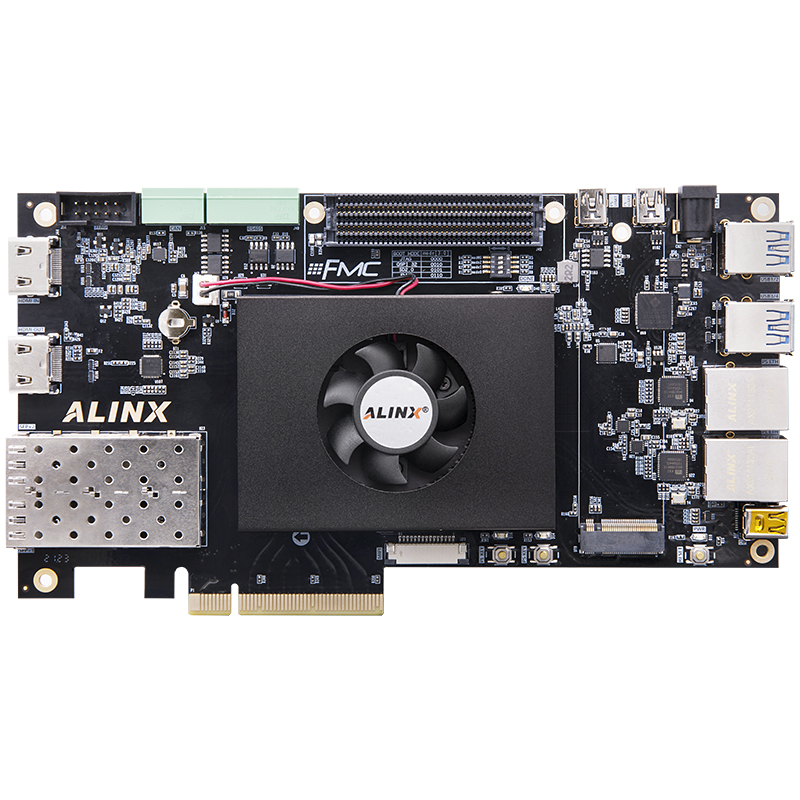

ALINX AXU7EV: Xilinx Zynq UltraScale+ MPSoC XCZU7EV AI FPGA Development Board

ALINX AXU7EV: Xilinx Zynq UltraScale+ MPSoC XCZU7EV AI FPGA Development board, “SOM ACU7EVB Core Board + Carrier Board”, which is convenient to use the SoM core board for secondary development. mainly composed of XCZU7EV-2FFVB1156I +PS 4GB DDR4 + PL 4GB DDR4 + 8GB eMMC + 64MB FLASH. 4*120 Pin Panasonic Connectors, Reserved expansion IOs. The carrier board extended a wealth of interfaces for users, such as 1 FMC LPC interface, 1 M.2 SSD interface, 1 Mini DP interface, 4 USB 3.0 Interface, 2 Gigabit Ethernet interfaces, 1 HDMI Output, 1 HDMI Input, 2 Uart, 1 PCIe x 8, 1 TF card slot, 2-Channel CAN bus interfaces, 2-Channel RS485 bus interfaces, 1 MIPI Camera Interface. It meets users' requirements for high-speed data exchange, data storage, Video transmission processing, deep learning, artificial intelligence and industrial control.


  • FPGA: Zynq UltraScale+ MPSOC, XCZU7EV-2FFVB1156I
  • ARM Cortex™-A53 x4, Cortex-R5 x2, Mali™-400MP2 GPU
  • PS 4GB DDR4, 64bit, PL 4GB DDR4, 64bit
  • MINI DP Output Interface, Supports 4K@30Hz or 1080P@60Hz
  • PCIe x8 interface, support PCI Express 3.0 (2.0 compatible)
  • NVME M.2 interface, used to connect M.2 SSD solid state drive (need to purchase)
  • Integrated HDMI, FMC, Gigabit Ethernet, USB 3.0, UART, JTAG and Other Interfaces
  • 2SFP+ Optical Fiber Interfaces, The Transmission Rate can be up to 12.5Gbps
  • Provide Documents in PDF (Schematic, PCB, Chip Datasheet and User Manual)


  • 12V 3A DC Adaptor
  • ALINX AXU7EV FPGA development board
  • ALINX Brand Xilinx Platform Cable USB (Programmer Loader)
  • Customized 30W Fan (Fixed on the Board)
  • Mini USB Cable
  • TF Card and Card Reader
