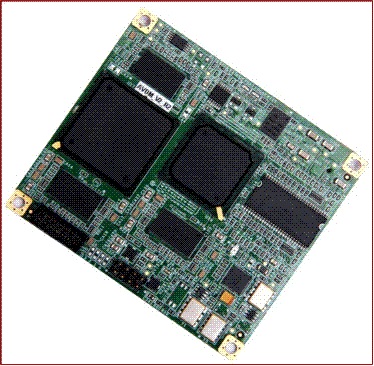

CoreEl Audio Video Decoding Module



This Audio Video Decoder Module is capable of decoding H.264 / MPEG-2 Decoder along with audio decoding for MP2, HE-AAC, HE-AACv2 etc. It will accept TS input over ASI or IP and output decoded video over SDI or HDMI interface.


  • H.264 High 4:2:2 Profile 10-bit Video Decoder


  • AV-Sync
  • Also supports HDMI output
  • Customization form factor
  • Genlock input
  • HD-SDI video output with embedded audio & VBI data
  • MPEG-2 4:2:2P@HL video decoder
  • MPEG-2 TS input over IP or ASI
  • RS-232 & RS-422 control interfaces
  • RoHS compliant
  • Supports MPEG-1 Layer 2, MPEG-2/4 AAC-LC and HE-AAC audio formats with Dolby pass through
  • Supports resolution from SD to Full HD (1920x1080) progressive & interlaced
  • VBI Data handling
