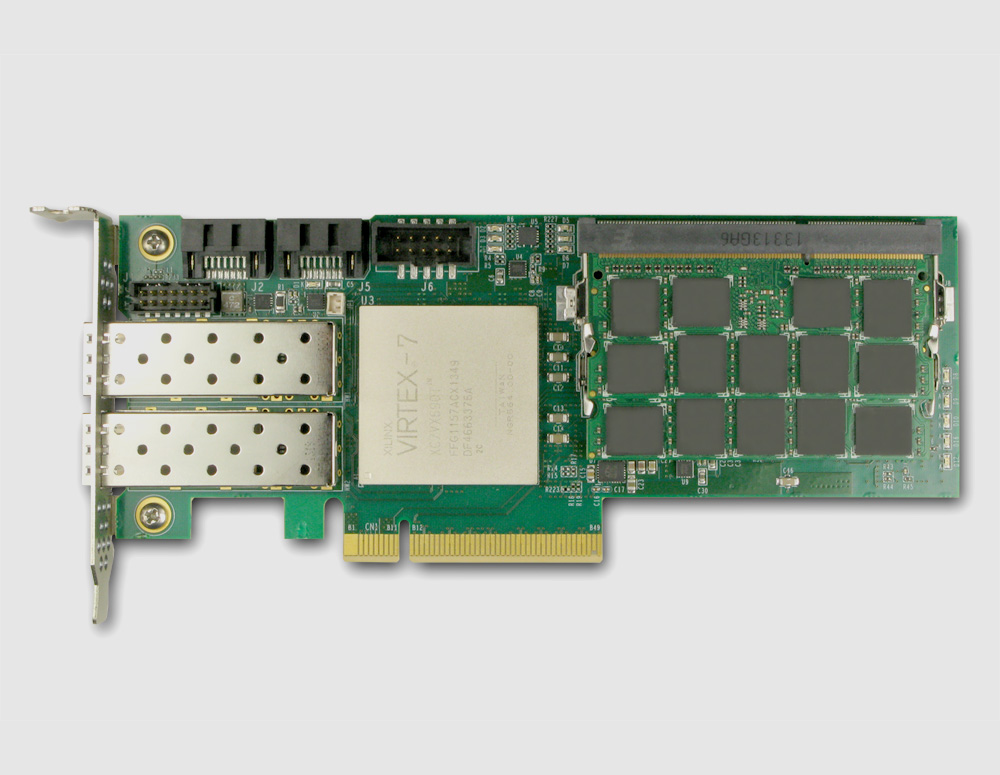

The ADM-PCIE-7V3 is a high performance reconfigurable Half-Length, low profile x8 PCIe® form factor board based on the Xilinx® Virtex-7 range of Platform FPGAs.

It features two independent channels of DDR3 memory capable of 1600MT/s (fitted with two 8GB SODIMMs), high speed I/O, SATA connections, dual SFP+ ports supporting 10G Ethernet, voltage/temperature/current control and monitoring, passive air-cooled heat sink. IBM Power8, CAPI and SDAccel supported


  • x8 PCIe® form factor board
  • Supports SDAccel Design Environment for OpenCL
  • PCIe Gen3x8
  • CAPI Reference Design Available for purchase from Alpha Data
  • SDK and Driver software included with board
  • There is a reference design package available for the ADM-PCIE-7V3 as a separate purchase


  • 12 Month Warranty and Support
  • Dual SATA Interfaces
  • Dual SFP+ cages for high speed optical communication including 10Gigabit Ethernet
  • ECC-SODIMM : Dual 204-pin SODIMM Sockets for memory speeds up to 1600MT/s: Fitted with two 8GB SODIMMs
  • FLASH : 1GBit of BPI x 16 configuration flash
  • Host I/F : PCI Express® Gen3 x8
  • Target Device(s) : Xilinx Virtex-7 XC7VX690T-2
